IS Type (Steel Body)
■ Overview
IS Type Large Ball Size = φ7/16 - 6"(φ11.11 - 152.4mm)
ISB ball transfer basic type.
Machining main body can smoothly convey heavy loads, and can rotate while transferring.
Stainless steel is also available.
■ Feature
Machined ball transfers with exceptional endurance for heavy loads.
Available in steel and stainless. Applications include refraction, curves, intersection, branches of conveyor systems, designed to convey heavy materials, changing direction of devices, also used for shearing, feeding and high damping machines.
Point contact mechanism is robust and precise.
The point contact mechanism of IS type ball transfer with less friction coefficient enables heavy cargo to move 360 degree easily. Nylon, ceramic bal, rust resistance type, hard chrome finishing is also available upon request.
Ball Size : φ7/16" (11.11mm)
Product Weight : 0.06 kg (0.588 N)
Load Capacity : 40 kgf (392 N)
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Ball Size : φ7/16" (11.11mm)
Product Weight : 0.06 kg (0.588 N)
Load Capacity : 40 kgf (392 N)
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Ball Size : φ9/16" (14.29mm)
Product Weight : 0.09 kg (0.882 N)
Load Capacity : 50 kgf (490 N)
Large Ball : SUJ2Body : SCM415
Small Balls : SUJ2
Cap : SPC
Ball Size : φ9/16" (14.29mm)
Product Weight : 0.09 kg (0.882 N)
Load Capacity : 50 kgf (490 N)
Large Ball : SUJ2Body : SCM415
Small Balls : SUJ2
Cap : SPC
Ball Size : φ7/8" (22.23mm)
Product Weight : 0.25 kg (2.45 N)
Load Capacity : 100 kgf (980 N)
Large Ball : SUJ2Body : SCM415
Small Balls : SUJ2
Cap : SPC
Ball Size : φ7/8" (22.23mm)
Product Weight : 0.25 kg (2.45 N)
Load Capacity : 100 kgf (980 N)
Large Ball : SUJ2Body : SCM415
Small Balls : SUJ2
Cap : SPC
Ball Size : φ1" (25.4mm)
Product Weight : 0.9 kg (8.82 N)
Load Capacity : 150 kgf (1470 N)
With Felt Seal
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Ball Size : φ1" (25.4mm)
Product Weight : 0.9 kg (8.82 N)
Load Capacity : 150 kgf (1470 N)
With Felt Seal
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Ball Size : φ1-1/2" (38.1mm)
Product Weight : 2.3 kg (22.5 N)
Load Capacity : 250 kgf (2450 N)
With Felt Seal
Draft:IS-38
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Ball Size : φ1-1/2" (38.1mm)
Product Weight : 2.3 kg (22.5 N)
Load Capacity : 250 kgf (2450 N)
With Felt Seal
Draft:IS-38
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Ball Size : φ2" (50.8mm)
Product Weight : 3.2 kg (31.4 N)
Load Capacity : 300 kgf (2940 N)
With Felt Seal
Draft:IS-51
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Ball Size : φ2" (50.8mm)
Product Weight : 3.2 kg (31.4 N)
Load Capacity : 300 kgf (2940 N)
With Felt Seal
Draft:IS-51
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC

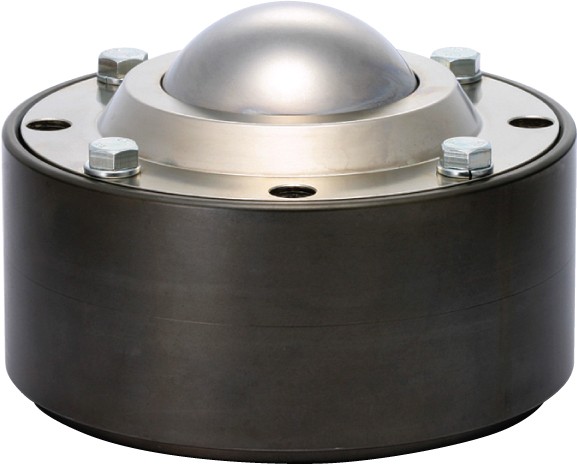

Ball Size : φ3" (76.2mm)
Product Weight : 10.5 kg (103 N)
Load Capacity : 450 kgf (4410 N)
With Felt Seal
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : S45C
Ball Size : φ3" (76.2mm)
Product Weight : 10.5 kg (103 N)
Load Capacity : 450 kgf (4410 N)
With Felt Seal
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : S45C
Ball Size : φ4" (101.6mm)
Product Weight : 18.5 kg (181 N)
Load Capacity : 1000 kgf (9800 N)
With Felt Seal
Draft:IS-100
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : S45C
Ball Size : φ4" (101.6mm)
Product Weight : 18.5 kg (181 N)
Load Capacity : 1000 kgf (9800 N)
With Felt Seal
Draft:IS-100
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : S45C
Ball Size : φ5" (127mm)
Product Weight : 39.6 kg (388 N)
Load Capacity : 1500 kgf (14700 N)
With Felt Seal
Draft:IS-127
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : S45C
Ball Size : φ5" (127mm)
Product Weight : 39.6 kg (388 N)
Load Capacity : 1500 kgf (14700 N)
With Felt Seal
Draft:IS-127
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : S45C
