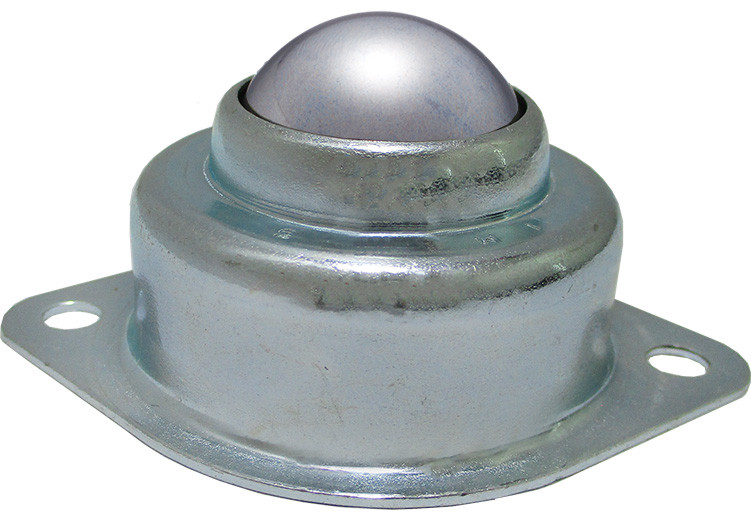

IM-R Type (Steel Body)
■ Overview
Ball diameter: 5/8 to 1" (15.88 to 25.4 mm)
Low-cost ball transfer mainly using press parts.
It mainly transports lightweight workpieces.
Steel type (light load, heavy load) and stainless steel type (light load) are available.
■ Feature
can manufacture transport lines according to the workpiece, from lightweight to heavy. By cutting only the saucer, we can now offer products for heavy loads at low prices.
It is also used for table-type ball transfer units "IBT", ❤" and "Magnet Sheet".
We also design and manufacture resin balls, ceramic balls, hard chrome plating, and other special types.
Ball size: 5/8" (15.88mm)
Weight: 0.07 kg (0.686 N)
Load: 70 kgf (686.4 N)
Body: SPCE
Main ball: SUJ2
Sub-ball: SUJ2
Receiving the ball: SCM415
Ball size: 5/8" (15.88mm)
Weight: 0.07 kg (0.686 N)
Load: 70 kgf (686.4 N)
Body: SPCE
Main ball: SUJ2
Sub-ball: SUJ2
Receiving the ball: SCM415

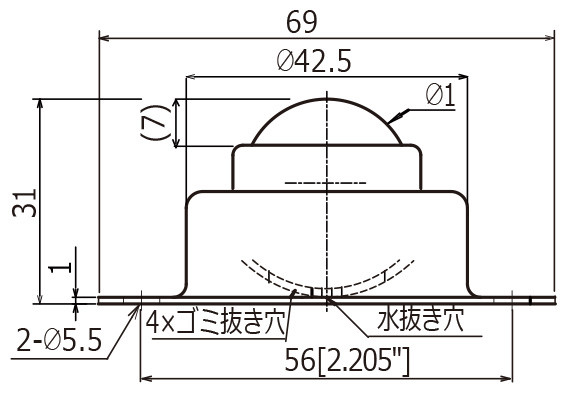

Ball size: 1" (25.4mm)
Weight：0.2 kg (1.961 N)
Load：120 kgf (1176.8 N)
Body: SPCE
Main ball: SUJ2
Sub-ball: SUJ2
Receiving the ball: SCM415
Ball size: 1" (25.4mm)
Weight：0.2 kg (1.961 N)
Load：120 kgf (1176.8 N)
Body: SPCE
Main ball: SUJ2
Sub-ball: SUJ2
Receiving the ball: SCM415
