Our Product
Standard Turntable
We have a top of market-share of this industry in Japan.
We have constructed good reliance between our customers by providing high effectiveness, functionality products.
■ Features
Each part is designed with Installation
Only needs flat pit to installation, and normally 1 day to be completed for installation
Endurance
Although it depends on the environment where be set, our turntable maintains its capability more than 10 years with periodic maintenance.
Instruction for installation
1st step
Draw the center position in the flat pit with black ink.
Draw the center position in the flat pit with black ink.
2nd step
a. Set basement at predefined position in the pit
b. Adjust the level of SW Type Special Wheel and Center axis
a. Set basement at predefined position in the pit
b. Adjust the level of SW Type Special Wheel and Center axis
4th step
Set corner framework
Set corner framework
5th step
Place concrete around corner frame.
Place concrete around corner frame.
*This step isn’t included our service but build company matter.

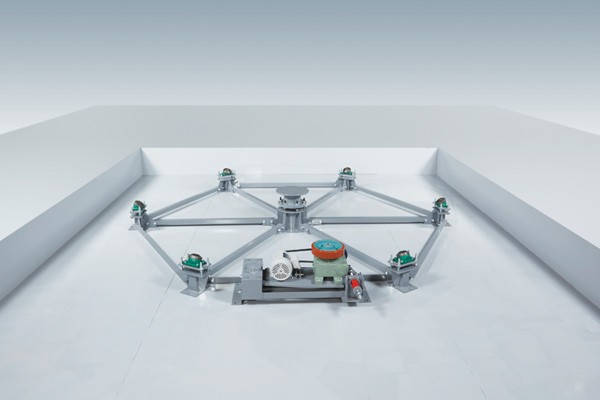

Principal mechanism
Each basement is independent.
We can adjust the level by bolt part.
Wheels are own product “SW Type Special Wheel” and also Center axis is own produced.
They hold up top of table and provide good rotation degree.
It consists of 3 parts, roller, reduction gear, and motor.
It is own produced with our precious plate working technology.
It works as a formwork and is set being kept constant clearance between principal.
There are 2 buttons, right and left, on the panel. Put the button to activate and Release the button to stop. Turntable keeps rotating until release the button.
Installation type is independence type or wall-hanging type.
Options
It is helpful If it is impossible to keep usable dimension to rotate.
Zinc-treated checkered steel plate and corner frame is available. It is a good method in cost performance to prevent rust
It is effective especially to prevent salt damage.
Use MC Nylon in head of SW Type Special Wheel.
For artistic design.
*finishing construction is not our service but building company matter.
Pay attention to safety surrounding area when it is used.
As explained, basically setting corner frame is the final process, but as to case, it is possible to be set before principal installed.
Inverter
It enables slow-start rotation thereby noise that occurs at first motion is reduced.
Measure in height
Change is available as to requirement.
It enables slow-start rotation thereby noise that occurs at first motion is reduced.
Measure in height
Change is available as to requirement.
Instruction for installation
1st step
Draw the center position in the flat pit with black ink.
Draw the center position in the flat pit with black ink.
2nd step
a. Set basement at predefined position in the pit
b. Adjust the level of SW Type Special Wheel and Center axis
a. Set basement at predefined position in the pit
b. Adjust the level of SW Type Special Wheel and Center axis
4th step
Set corner framework
Set corner framework
5th step
Place concrete around corner frame.
Place concrete around corner frame.
*This step isn’t included our service but build company matter.
Principal mechanism
Each basement is independent.
We can adjust the level by bolt part.
Wheels are own product “SW Type Special Wheel” and also Center axis is own produced.
They hold up top of table and provide good rotation degree.
It consists of 3 parts, roller, reduction gear, and motor.
It is own produced with our precious plate working technology.
It works as a formwork and is set being kept constant clearance between principal.
There are 2 buttons, right and left, on the panel. Put the button to activate and Release the button to stop. Turntable keeps rotating until release the button.
Installation type is independence type or wall-hanging type.
Options
It is helpful If it is impossible to keep usable dimension to rotate.
Zinc-treated checkered steel plate and corner frame is available. It is a good method in cost performance to prevent rust
It is effective especially to prevent salt damage.
Use MC Nylon in head of SW Type Special Wheel.
For artistic design.
*finishing construction is not our service but building company matter.
Pay attention to safety surrounding area when it is used.
As explained, basically setting corner frame is the final process, but as to case, it is possible to be set before principal installed.
Inverter
It enables slow-start rotation thereby noise that occurs at first motion is reduced.
Measure in height
Change is available as to requirement.
It enables slow-start rotation thereby noise that occurs at first motion is reduced.
Measure in height
Change is available as to requirement.
| Type | Turntable Diameter (mm.) |
Movable load (kg.) | Measure in height (mm) |
Motor (kw) | Power Source |
| ISB-40 | 4000 | 2500 | 450 | 0.75 | 3P/AC200V |
