IS-N Type (Steel Body)
■ Overview

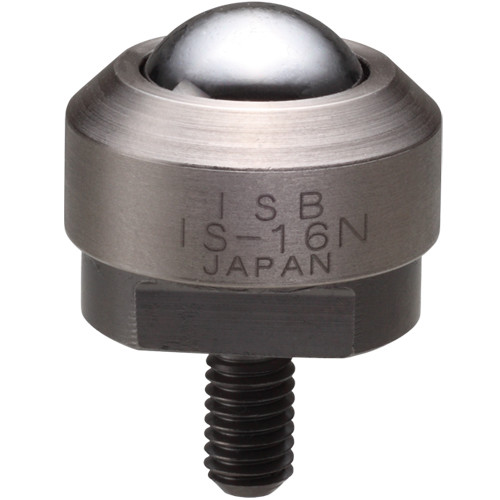

IS-N Type Large Ball Size = φ3/16 - 1-1/2"(4.76 - 38.1mm)
Precision –machined stud mount ball transfer, easy installation with sturdy bolt.
Tapered-cap with stainless and steel is also available.
■ Feature
Precision-machined stud mount ball transfer, easy installation with sturdy bolt.
Nylon, ceramic ball, rust resistance type, hard chrome finishing is also available upon request.
Ball Size : φ3/16" (4.76mm)
Product Weight : 0.01 kg (0.098 N)
Load Capacity : 10 kgf (98 N)
Tightening torque ：5.1N･m
Draft:IS-05N
Body : SUS420J2
Large Ball : SUJ2
Small Balls : SUJ2
Cap : S45C
Ball Size : φ3/16" (4.76mm)
Product Weight : 0.01 kg (0.098 N)
Load Capacity : 10 kgf (98 N)
Tightening torque ：5.1N･m
Draft:IS-05N
Body : SUS420J2
Large Ball : SUJ2
Small Balls : SUJ2
Cap : S45C
Ball Size : φ1/4" (6.35mm)
Product Weight : 0.02 kg (0.196 N)
Load Capacity : 20 kgf (196 N)
Tightening torque ：5.1N･m
Draft:IS-06N
Body : SUS420J2
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SS400
Ball Size : φ1/4" (6.35mm)
Product Weight : 0.02 kg (0.196 N)
Load Capacity : 20 kgf (196 N)
Tightening torque ：5.1N･m
Draft:IS-06N
Body : SUS420J2
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SS400
Ball Size : φ5/16" (7.94mm)
Product Weight : 0.03 kg (0.294 N)
Load Capacity : 30 kgf (294 N)
Tightening torque ：12.3N･m
Draft:IS-08N
Body : SUS420J2
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SUM
Ball Size : φ5/16" (7.94mm)
Product Weight : 0.03 kg (0.294 N)
Load Capacity : 30 kgf (294 N)
Tightening torque ：12.3N･m
Draft:IS-08N
Body : SUS420J2
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SUM
Ball Size : φ7/16" (11.11mm)
Product Weight : 0.06 kg (0.588 N)
Load Capacity : 40 kgf (392 N)
Hexagon socket head screw (Removable)
Draft:IS-10N
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Bolt : SCM435
Ball Size : φ7/16" (11.11mm)
Product Weight : 0.06 kg (0.588 N)
Load Capacity : 40 kgf (392 N)
Hexagon socket head screw (Removable)
Draft:IS-10N
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Bolt : SCM435
Ball Size : φ9/16" (14.29mm)
Product Weight : 0.1 kg (0.98 N)
Load Capacity : 50 kgf (490 N)
Hexagon socket head screw (Removable)
Draft:IS-13N
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Bolt : SCM435
Ball Size : φ9/16" (14.29mm)
Product Weight : 0.1 kg (0.98 N)
Load Capacity : 50 kgf (490 N)
Hexagon socket head screw (Removable)
Draft:IS-13N
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Bolt : SCM435

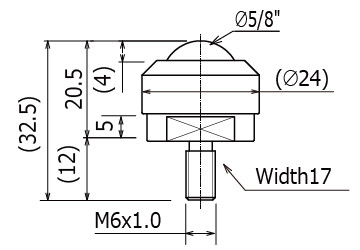

Ball Size : φ5/8" (15.88mm)
Product Weight : 0.05 kg (0.49 N)
Load Capacity : 70 kgf (686 N)
Tightening torque ：5.1N･m
Draft:IS-16N
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SUM
Ball Size : φ5/8" (15.88mm)
Product Weight : 0.05 kg (0.49 N)
Load Capacity : 70 kgf (686 N)
Tightening torque ：5.1N･m
Draft:IS-16N
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SUM
Ball Size : φ7/8" (22.23mm)
Product Weight : 0.29 kg (2.84 N)
Load Capacity : 100 kgf (980 N)
Hexagon socket head screw (Removable)
Draft:IS-19N
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Bolt : SCM435
Ball Size : φ7/8" (22.23mm)
Product Weight : 0.29 kg (2.84 N)
Load Capacity : 100 kgf (980 N)
Hexagon socket head screw (Removable)
Draft:IS-19N
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Bolt : SCM435
Ball Size : φ1" (25.4mm)
Product Weight : 0.6 kg (5.88 N)
Load Capacity : 150 kgf (1470 N)
With Felt Seal
Hexagon socket head screw (Removable)
Draft:IS-25N
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Bolt : SCM435
Ball Size : φ1" (25.4mm)
Product Weight : 0.6 kg (5.88 N)
Load Capacity : 150 kgf (1470 N)
With Felt Seal
Hexagon socket head screw (Removable)
Draft:IS-25N
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Bolt : SCM435
Ball Size : φ1-1/2" (38.1mm)
Product Weight : 1.6 kg (15.7 N)
Load Capacity : 250 kgf (2450 N)
With Felt Seal
Hexagon socket head screw (Removable)
Draft:IS-38N
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Bolt : SCM435
Ball Size : φ1-1/2" (38.1mm)
Product Weight : 1.6 kg (15.7 N)
Load Capacity : 250 kgf (2450 N)
With Felt Seal
Hexagon socket head screw (Removable)
Draft:IS-38N
Body : SCM415
Large Ball : SUJ2
Small Balls : SUJ2
Cap : SPC
Bolt : SCM435
